TrueVIS SG2 Series Specifications

Specifications

Model	SG2-640	SG2-540	SG2-300
Printing method	Piezo ink-jet method
Media Width	315 to 1625 mm	275 to 1371 mm	182 to 762 mm
Thickness	Max. 1.0 mm (39 mil) with liner for printing. Max. 0.4 mm (16mil) with liner and 0.22 mm (9 mil) without liner, for cutting
Roll outer diameter	Max. 210 mm (8.3 in.)
Roll weight	Max. 40 kg	Max. 30 kg	Max. 25 kg
Core diameter (1)	76.2 mm (3 in.) or 50.8 mm (2 in.)
Printing / cutting width (2)	Max. 1600 mm	Max. 1346 mm (53 in.)	Max. 736 mm (29 in.)
Ink Type	TrueVIS INK TR2 500 cc pouch
Colours	Four colours (Cyan, Magenta, Yellow and Black)
Printing resolution (dots per inch)	Max. 1200 dpi
Cutting speed	10 to 300 mm/s
Blade force (3)	30 to 500  gf
Blade Type	Roland CAMM-1 series blade
Offset	0.000 to 1.500 mm (0.0 to 59.1 mil)
Software resolution (when cutting)	0.025 mm/step (0.98 mil/step)
Distance accuracy (when printing) (4) (5)	Error of less than ±0.3% of distance travelled or ±0.3 mm (±11.8 mil), whichever is greater
Distance accuracy (when cutting) (4)	Error of less than ±0.4% of distance travelled or ±0.3 mm (±11.8 mil), whichever is greater. When distance correction has been performed (when the setting for [CUTTING MENU] – [CALIBRATION] has been made): Error of less than ±0.2% of distance travelled or ±0.1 mm (±3.9 mil), whichever is greater.
Repeatability (when cutting) (4) (6)	±0.1 mm (±3.9 mil) or less
Alignment accuracy for printing and cutting (4) (7)	±0.5 mm (±19.7 mil) or less
Alignment accuracy for printing and cutting when reloading media (4) (8)	Error of less than ±0.5% of distance travelled, or ±3 mm (±0.2 in.), whichever is greater
Media heating system (9)	Print heater set temperature: 30 to 45°C (86 to 112°F) Dryer set temperature: 30 to 50°C (86 to 122°F)
Connectivity	Ethernet (100BASE-TX/1000BASE-T, automatic switching)
Power-saving function	Automatic sleep feature
Power requirements	AC 100 to 120 V ±10%, 8.0 A, 50/60 Hz or AC 220 to 240 V ±10%, 4.1 A, 50/60 Hz	AC 100 to 120 V ±10%, 5.4 A, 50/60 Hz or AC 220 to 240 V ±10%, 2.7 A, 50/60 Hz
Power consumption	During operation	Approx. 1090 W	Approx. 710 W
Sleep mode	Approx. 40 W
Acoustic noise level	During operation	63 dB (A) or less
During standby	53 dB (A) or less
Dimensions (with stand)	2945 (W) × 730 (D) × 1310 (H) mm (116 x 28.8 x 51.6 in.)	2685 (W) × 730 (D) × 1310 (H) mm (105.8 x 28.8 x 51.6 in.)	2070 (W) × 730 (D) × 1310 (H) mm (81.5 x 28.8 x 51.6 in.)
Weight (with stand)	197 kg (434 lb.)	180 kg (397 lb.)	147 kg (324 lb.)
Environment	Power on	Temperature: 20 to 32°C (68 to 90°F), humidity: 35 to 80%RH (no condensation)
Power off	Temperature: 5 to 40°C (41 to 104°F), humidity: 20 to 80%RH (no condensation)
Included items	VersaWorks 6 RIP Software, exclusive stands, power cable, media clamps, media holders, replacement blade for separating knife, manuals etc.

Specifications, designs and dimensions listed may be subject to change without notice
1 The media holders of this machine are designed to be used exclusively with media that has a paper tube (core) with an inner diameter of 76.2 mm (3 in.).To use 50.8 mm (2 in.) media, the optional media flanges are required.
2 The length of printing or cutting is subject to the limitations of the program.
3 500 gf is the maximum instantaneous blade force.The blade force must be adjusted according to details such as the media thickness.
4 Media type: Media specified by Roland DG Corporation. Temperature: 25°C (77°F), humidity: 50%RH. Roll media must be loaded correctly. Applicable when all pinch rollers that can be used with the media width are used. Side margins: 25 mm (1.0 in.) or more for both the left and right margins. Excluding expansion/contraction of the media. Not assured when the print heater or dryer is used. Assumes all correction and adjustment functions of the machine have been used properly.
5 Print travel: 1 m (39.4 in.)
6 [PREFEED] menu item must be set to “ENABLE.” Range for assured repetition accuracy. For media with a width exceeding 610 mm (24 in.): Length: 4000 mm (157.5 in.). For media with a width of 610 mm (24.0 in.) or less: Length: 8000 mm (315 in.)
7 Provided that the media feed length is 3000 mm (118.1 in.) or less. Excludes the effects of slanted movement and of expansion and contraction of the media.
8 Data size: 1625 mm model: 1000 mm (39.4 in.) in the media-feed direction, 1600 mm (63 in.) in the carriage-movement direction. 1371 mm model: 1000 mm (39.4 in.) in the media-feed direction, 1346 mm (53.0 in.) in the carriage-movement direction. No lamination. Automatic detection of crop marks at 4 points when media is reloaded. During cutting, [PREFEED] menu item must be set to “ENABLE.” Excluding possible shift caused by expansion/contraction of the media and/or by reloading the media.
9 Warm-up is required after power up. This may require 5 to 20 minutes, depending on the operating environment.Depending on the ambient temperature and media width, the preset temperature may fail to be reached.

VersaWorks 6 System Requirements
Operating system	Windows® 10 (32/64 bit), Windows® 8.1 (32/64 bit), Windows® 7 Ultimate / Professional (32/64 bit)
CPU	Intel® Core™2 Duo, 2.0 GHz or faster recommended
RAM	2 GB or more recommended
Video card and monitor	A resolution of 1280 x 1024 or more recommended
Free hard-disk space (HDD/SSD)	40 GB or more recommended
Hard-disk file system	NTFS format
Optical drive	DVD-ROM drive
Other	Internet connection recommended

Accessories

Model	Description
TR2-CY	TrueVIS INK Cyan, 500 cc
TR2-MG	TrueVIS INK Magenta, 500 cc
TR2-YE	TrueVIS INK Yellow, 500 cc
TR2-BK	TrueVIS INK Black, 500 cc
TR2-CL	TrueVIS Cleaning Liquid, 500 cc
ZEC-U5032	Cutting blade for standard sign vinyl, 2pcs.
ZEC-U5025	Cutting blade for standard sign vinyl, reflective and fluorescent / thick media, 5pcs.
XD-CH2	Adjustable blade holder – aluminium
XD-CH3	Adjustable blade holder – resin

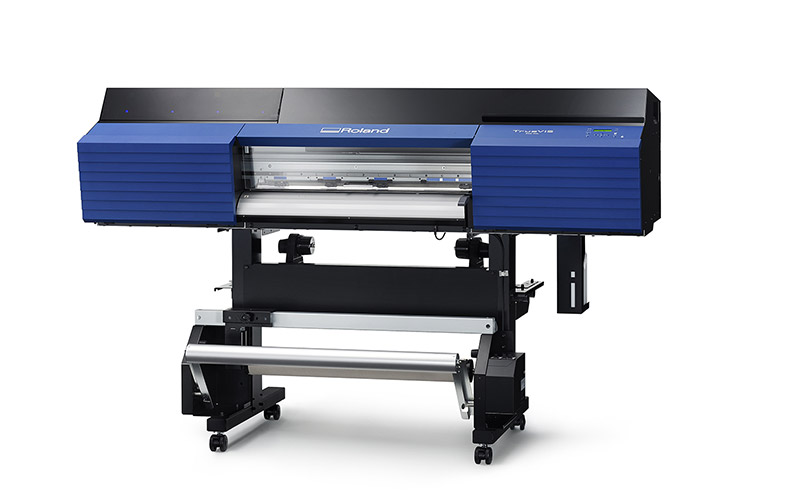

Automated Take-Up System

TU4-64 [For SG2-640]
TU4-54 [For SG2-540]
TU4-30 [For SG2-300]
